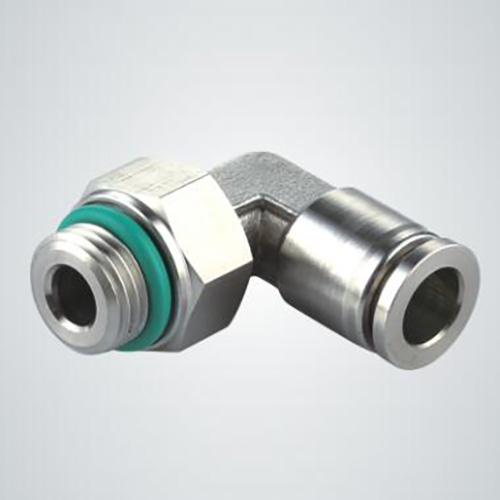

360° Male Swivel Elbow with G Thread
| Model | T | φD | φP | L | A | L1 | H |
| L-PL-G3-M3 | M3 | 3 | – | – | – | – | – |
| L-PL-G3-M5 | M5 | 3 | – | – | – | – | – |
| L-PL-G4-01 | G1/8 | 4 | 9.5 | 22 | 5.5 | 22 | 14 |
| L-PL-G4-02 | G1/4 | 4 | 9.5 | 22 | 6.5 | 22 | 17 |
| L-PL-G6-01 | G1/8 | 6 | 11.5 | 22 | 5.5 | 22 | 14 |
| L-PL-G6-02 | G’1/4 | 6 | 11.5 | 22 | 6.5 | 23 | 17 |
| L-PL-G6-03 | G3/8 | 6 | 11.5 | 22 | 8 | 25 | 22 |
| L-PL-G6-04 | G1/2 | 6 | 11.5 | 22 | 8 | 28 | 24 |
| L-PL-G8-01 | G1/8 | 8 | 13.5 | 23 | 5.5 | 25 | 14 |
| L-PL-G8-02 | G1/4 | 8 | 13.5 | 23 | 6.5 | 26 | 17 |
| L-PL-G8-03 | G3/8 | 8 | 13.5 | 23 | 8 | 26 | 22 |
| L-PL-G8-04 | G1/2 | 8 | 13.5 | 23 | 8 | 29 | 24 |
| L-PL-G10-01 | G1/8 | 10 | 15.5 | 26 | 5.5 | 25 | 17 |
| L-PL-G10-02 | G1/4 | 10 | 15.5 | 26 | 6.5 | 26 | 17 |
| L-PL-G10-03 | G3/8 | 10 | 15.5 | 26 | 8 | 26 | 22 |
| L-PL-G10-04 | G1/2 | 10 | 15.5 | 26 | 8 | 29 | 24 |
| L-PL-G12-02 | G1/4 | 12 | 18.5 | 30 | 6.5 | 30 | 19 |
| L-PL-G12-03 | G3/8 | 12 | 18.5 | 30 | 8 | 30 | 22 |
| L-PL-G12-04 | G1/2 | 12 | 18.5 | 30 | 8 | 33 | 24 |
| L-PL-G14-02 | G1/8 | 14 | 19.5 | 30 | 6.5 | 30 | 19 |
| L-PL-G14-03 | G3/8 | 14 | 19.5 | 30 | 8 | 30 | 22 |
| L-PL-G14-04 | G1/2 | 14 | 19.5 | 30 | 8 | 33 | 24 |
| L-PL-G16-02 | G1/4 | 16 | 21.5 | 35 | 6.5 | 32 | 24 |
| L-PL-G16-03 | G3/8 | 16 | 21.5 | 35 | 8 | 32 | 24 |
| L-PL-G16-04 | G1/2 | 16 | 21.5 | 35 | 8 | 35 | 24 |
Drawing & Specification
L-PL-G
| Model | T | φD | φP | L | A | L1 | H |
| L-PL-G1/8-(10-32) | 10-32 | 1/8 | – | – | – | – | – |
| L-PL-G1/8-G1/8 | G1/8 | 1/8 | – | – | – | – | – |
| L-PL-G5/32-(10-32) | 10-32 | 5/32 | 9.5 | 22 | 5.5 | 22 | 14 |
| L-PL-G5/32-G1/8 | G1/8 | 5/32 | 9.5 | 22 | 5.5 | 22 | 14 |
| L-PL-G5/32-G1/4 | G1/4 | 5/32 | 9.5 | 22 | 6.5 | 22 | 17 |
| L-PL-G1/4-G1/8 | G1/8 | 1/4 | 11.5 | 22 | 5.5 | 22 | 14 |
| L-PL-G1/4-G1/4 | G1/4 | 1/4 | 11.5 | 22 | 6.5 | 23 | 17 |
| L-PL-G1/4-G3/8 | G3/8 | 1/4 | 11.5 | 22 | 8 | 25 | 22 |
| L-PL-G1/4-G1/2 | G1/2 | 1/4 | 11.5 | 22 | 8 | 28 | 24 |
| L-PL-G5/16-G1/8 | G1/8 | 5/16 | 13.5 | 23 | 5.5 | 25 | 14 |
| L-PL-G5/16-G1/4 | G1/4 | 5/16 | 13.5 | 23 | 6.5 | 26 | 17 |
| L-PL-G5/16-G3/8 | G3/8 | 5/16 | 13.5 | 23 | 8 | 26 | 22 |
| L-PL-G5/16-G1/2 | G1/2 | 5/16 | 13.5 | 23 | 8 | 29 | 24 |
| L-PL-G3/8-G1/8 | G1/8 | 3/8 | 15.5 | 26 | 5.5 | 25 | 17 |
| L-PL-G3/8-G1/4 | G1/4 | 3/8 | 15.5 | 26 | 6.5 | 26 | 17 |
| L-PL-G3/8-G3/8 | G3/8 | 3/8 | 15.5 | 26 | 8 | 26 | 22 |
| L-PL-G3/8-G1/2 | G1/2 | 3/8 | 15.5 | 26 | 8 | 29 | 24 |
| L-PL-G1/2-G1/4 | G1/4 | 1/2 | 18.5 | 30 | 6.5 | 30 | 19 |
| L-PL-G1/2-G3/8 | G3/8 | 1/2 | 18.5 | 30 | 8 | 30 | 22 |
| L-PL-G1/2-G1/2 | G1/2 | 1/2 | 18.5 | 30 | 8 | 33 | 24 |
