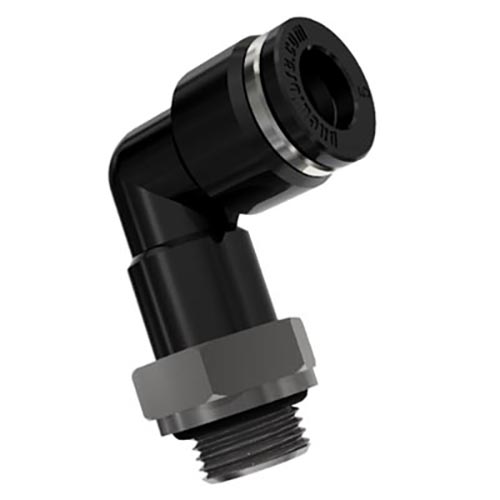

360° Swivel Elbow
| MODEL | ФD | R | A | B | E | H |
| PL04-M5 | 4 | M5 | 3.8 | 17.3 | 17.5 | 8 |
| PL04-M6 | M6 | 4.5 | 18 | |||
| PL04-01 | R1/8 | 7 | 23.5 | 10 | ||
| PL04-02 | R1/4 | 9.5 | 27 | 14 | ||
| PL06-M5 | 6 | M5 | 3.8 | 17.3 | 19 | 8 |
| PL06-M6 | M6 | 4.5 | 18 | |||
| PL06-01 | R1/8 | 7 | 25.2 | 12 | ||
| PL06-02 | R1/4 | 9.5 | 28.2 | 14 | ||
| PL06-03 | R3/8 | 10.5 | 29.7 | 17 | ||
| PL06-04 | R1/2 | 13.5 | 33.2 | 21 | ||
| PL08-01 | 8 | R1/8 | 7 | 26.5 | 22.8 | 14 |
| PL08-02 | R1/4 | 9.5 | 29 | |||
| PL08-03 | R3/8 | 10.5 | 30.5 | 17 | ||
| PL08-04 | R1/2 | 13.5 | 34 | 21 | ||
| PL10-01 | 10 | R1/8 | 7 | 29.5 | 26.3 | 17 |
| PL10-02 | R1/4 | 9.5 | 32 | |||
| PL10-03 | R3/8 | 10.5 | 33 | |||
| PL10-04 | R1/2 | 13.5 | 36.5 | 21 | ||
| PL12-02 | 12 | R1/4 | 9.5 | 35.5 | 29.6 | 20 |
| PL12-03 | R3/8 | 10.5 | 36.5 | |||
| PL12-04 | R1/2 | 13.5 | 39.5 | 21 | ||
| PL14-03 | 14 | R3/8 | 10.5 | 41.5 | 31.7 | 24 |
| PL14-04 | R1/2 | 13.5 | 45.5 | |||
| PL16-03 | 16 | R3/8 | 10.5 | 43 | 33 | |
| PL16-04 | R1/2 | 13.5 | 46 |
Drawing & Specification
PL
Welcome To Share This Page
| MODEL | ФD | NPT | A | B | E | H |
| PL5/32-U | 5/32 | 10-32UNF | 3.8 | 22 | 17.5 | 11.1 |
| PL5/32-N1 | NPT1/8 | 7.5 | 24 | |||
| PL5/32-N2 | NPT1/4 | 10.5 | 28 | 14.3 | ||
| PL3/16-U | 3/16 | 10-32UNF | 3.8 | 22 | 17.8 | 11.1 |
| PL3/16-N1 | NPT1/8 | 7.5 | 24.5 | |||
| PL3/16-N2 | NPT1/4 | 10.5 | 28 | 14.3 | ||
| PL3/16-N3 | NPT3/8 | 11 | 29 | 17.4 | ||
| PL1/4-U | 1/4 | 10-32UNF | 3.8 | 24.4 | 19 | 12.7 |
| PL1/4-N1 | NPT1/8 | 7.5 | 25.7 | |||
| PL1/4-N2 | NPT1/4 | 10.5 | 29.2 | 14.3 | ||
| PL1/4-N3 | NPT3/8 | 11 | 30.2 | 17.4 | ||
| PL5/16-N1 | 5/16 | NPT1/8 | 7.5 | 27 | 22.8 | 14.3 |
| PL5/16-N2 | NPT1/4 | 10.5 | 30 | |||
| PL5/16-N3 | NPT3/8 | 11 | 31 | 17.4 | ||
| PL3/8-N1 | 3/8 | NPT1/8 | 7.5 | 30 | 26.3 | |
| PL3/8-N2 | NPT1/4 | 10.5 | 33 | |||
| PL3/8-N3 | NPT3/8 | 11 | 33.5 | |||
| PL3/8-N4 | NPT1/2 | 14 | 37 | 22.2 | ||
| PL1/2-N2 | 1/2 | NPT1/4 | 10.5 | 36.5 | 29.6 | |
| PL1/2-N3 | NPT3/8 | 11 | 37 | |||
| PL1/2-N4 | NPT1/2 | 14 | 40 |
