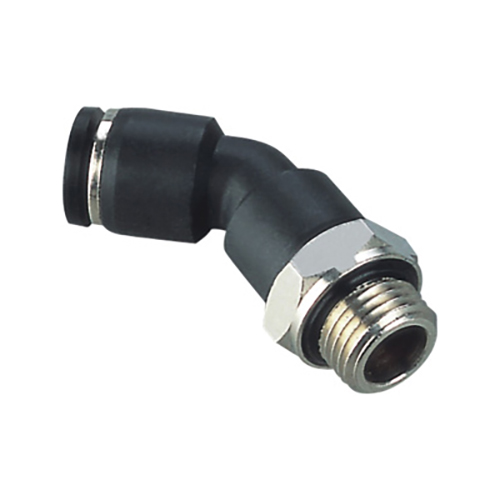

45° Elbow

PLH 45° Elbow
MODEL ΦD R A B E H
PLH04-M5 4 M5 3.8 20 16.2 10
PLH04-M6 M6 4.5 20.7
PLH04-01 R1/8 7 22.2
PLH04-02 R1/4 9.5 25.7 14
PLH06-M5 6 M5 3.8 21.7 17.7 12
PLH06-M6 M6 4.5 22.4
PLH06-01 R1/8 7 23.9
PLH06-02 R1/4 9.5 26.9 14
PLH06-03 R3/8 10.5 28.4 17
PLH06-04 R1/2 13.5 31.9 21
PLH08-01 8 R1/8 7 27.1 20.9 14
PLH08-02 R1/4 9.5 29.6
PLH08-03 R3/8 10.5 31.1 17
PLH08-04 R1/2 13.5 34.6 21
PLH10-01 10 R1/8 7 29.7 22.2 17
PLH10-02 R1/4 9.5 32.2
PLH10-03 R3/8 10.5 33.2
PLH10-04 R1/2 13.5 36.7 21
PLH12-02 12 R1/4 9.5 35.2 26.3
PLH12-03 R3/8 10.5 36.2
PLH12-04 R1/2 13.5 39.2


Drawing & Specification

PLH

PLH 45° Elbow Drawing
Welcome To Share This Page
MODEL ΦD NPT A B E H
PLH5/32-U 5/32 10-32UNF 3.8 20.7 16.2 11.1
PLH5/32-N1 NPT1/8 7.5 22.7
PLH5/32-N2 NPT1/4 10.5 26.7 14.3
PLH3/16-U 3/16 10-32UNF 3.8 20.7 16.5 11.1
PLH3/16-N1 NPT1/8 7.5 23.2
PLH3/16-N2 NPT1/4 10.5 26.7 14.3
PLH3/16-N3 NPT3/8 11 27.7 17.4
PLH1/4-U 1/4 10-32UNF 3.8 23.1 17.7 12.7
PLH1/4-N1 NPT1/8 7.5 24.4
PLH1/4-N2 NPT1/4 10.5 27.9 14.3
PLH1/4-N3 NPT3/8 11 28.9 17.4
PLH5/16-N1 5/16 NPT1/8 7.5 27.6 20.9 14.3
PLH5/16-N2 NPT1/4 10.5 30.6
PLH5/16-N3 NPT3/8 11 31.6 17.4
PLH3/8-N1 3/8 NPT1/8 7.5 30.2 22.2
PLH3/8-N2 NPT1/4 10.5 33.2
PLH3/8-N3 NPT3/8 11 33.7
PLH3/8-N4 NPT1/2 14 37.2 22.2
PLH1/2-N2 1/2 NPT1/4 10.5 36.2 26.3
PLH1/2-N3 NPT3/8 11 36.7
PLH1/2-N4 NPT1/2 14 39.7
