Bulkhead Elbow

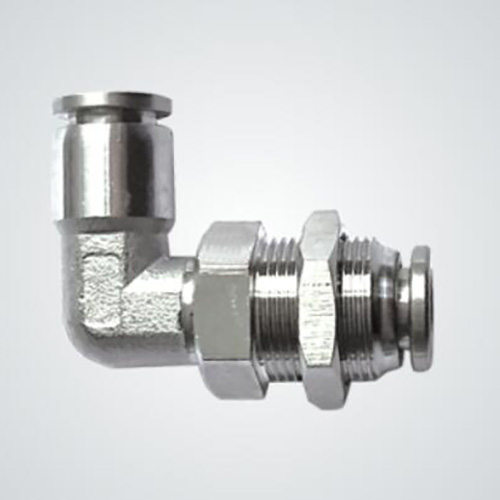

L-PLM Bulkhead Elbow
Model φP φD E F H L1 L2
L-PLM4-4 9 4 14.7 S14 10 16.9 33
L-PLM6-6 11 6 16.4 S14 10 21.1 33.9
L-PLM8-8 13.7 8 16.8 S17 10 22 36.4
L-PLM10-10 15.5 10 18.4 S17 10 24.6 42.3
L-PLM12-12 18.7 12 19.2 S22 10.3 28.8 40.2


Drawing & Specification

L-PLM

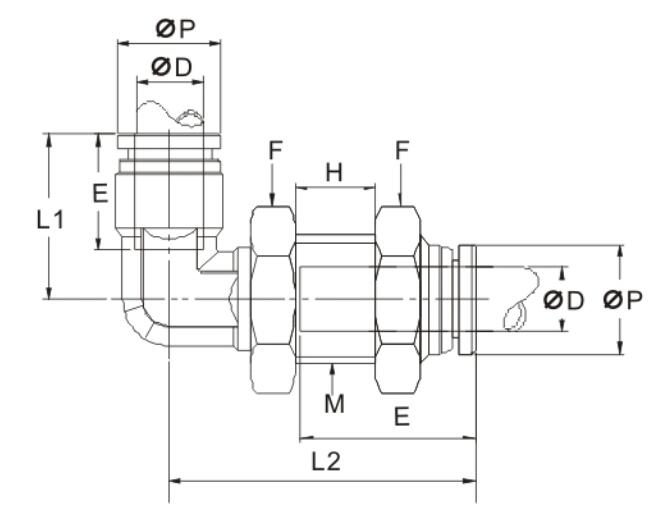

L-PLMD Bulkhead Elbow Drawing
