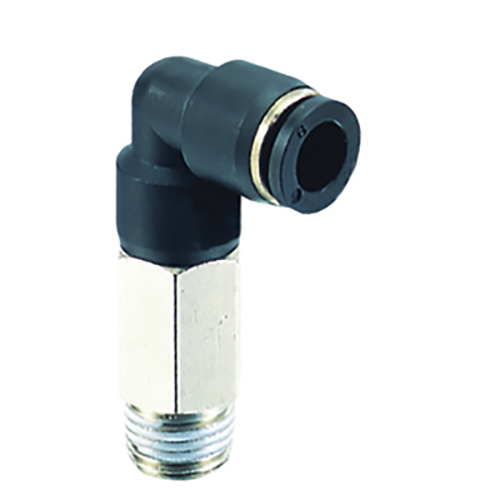

Extended Elbow
| MODEL | ФD | R | A | B | E | H |
| PLL04-M5 | 4 | M5 | 3.8 | 29.3 | 17.5 | 8 |
| PLL04-M6 | M6 | 4.5 | 30 | |||
| PLL04-01 | R1/8 | 7 | 35.5 | 10 | ||
| PLL04-02 | R1/4 | 9.5 | 39 | 14 | ||
| PLL06-M5 | 6 | M5 | 3.8 | 31.3 | 19 | 8 |
| PLL06-M6 | M6 | 4.5 | 32 | |||
| PLL06-01 | R1/8 | 7 | 39.2 | 12 | ||
| PLL06-02 | R1/4 | 9.5 | 42.2 | 14 | ||
| PLL06-03 | R3/8 | 10.5 | 43.7 | 17 | ||
| PLL06-04 | R1/2 | 13.5 | 47.2 | 21 | ||
| PLL08-01 | 8 | R1/8 | 7 | 41.8 | 22.8 | 14 |
| PLL08-02 | R1/4 | 9.5 | 44.3 | |||
| PLL08-03 | R3/8 | 10.5 | 45.8 | 17 | ||
| PLL08-04 | R1/2 | 13.5 | 49.3 | 21 | ||
| PLL10-01 | 10 | R1/8 | 7 | 49.5 | 26.3 | 17 |
| PLL10-02 | R1/4 | 9.5 | 52 | |||
| PLL10-03 | R3/8 | 10.5 | 53 | |||
| PLL10-04 | R1/2 | 13.5 | 56.5 | 21 | ||
| PLL12-02 | 12 | R1/4 | 9.5 | 58.5 | 29.6 | 20 |
| PLL12-03 | R3/8 | 10.5 | 59.5 | |||
| PLL12-04 | R1/2 | 13.5 | 62.5 | 21 |
Drawing & Specification
PLL
Welcome To Share This Page
| MODEL | ФD | NPT | A | B | E | H |
| PLL5/32-U | 5/32 | 10-32UNF | 3.8 | 33.5 | 17.5 | 11.1 |
| PLL5/32-N1 | NPT1/8 | 7.5 | 36 | |||
| PLL3/16-N1 | 3/16 | NPT1/8 | 36 | 17.8 | 11.1 | |
| PLL3/16-N2 | NPT1/4 | 10.5 | 39.5 | 14.3 | ||
| PLL3/16-N3 | NPT3/8 | 11 | 40.5 | 17.4 | ||
| PLL1/4-N1 | 1/4 | NPT1/8 | 7.5 | 39.7 | 19 | 12.7 |
| PLL1/4-N2 | NPT1/4 | 10.5 | 43.2 | 14.3 | ||
| PLL1/4-N3 | NPT3/8 | 11 | 44.2 | 17.4 | ||
| PLL5/16-N1 | 5/16 | NPT1/8 | 7.5 | 42.3 | 22.8 | 14.3 |
| PLL5/16-N2 | NPT1/4 | 10.5 | 45.3 | |||
| PLL5/16-N3 | NPT3/8 | 11 | 46.3 | 17.4 | ||
| PLL3/8-N2 | 3/8 | NPT1/4 | 10.5 | 52 | 26.3 | |
| PLL3/8-N3 | NPT3/8 | 11 | 53.5 | |||
| PLL3/8-N4 | NPT1/2 | 14 | 57 | 22.2 | ||
| PLL1/2-N2 | 1/2 | NPT1/4 | 10.5 | 59.5 | 29.6 | |
| PLL1/2-N3 | NPT3/8 | 11 | 60 | |||
| PLL1/2-N4 | NPT1/2 | 14 | 63 |
