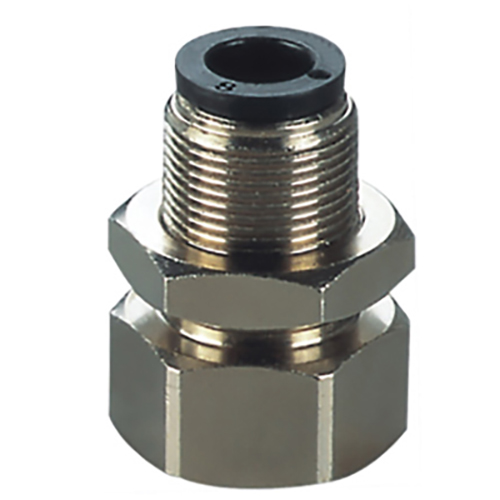

Female Bulkhead Fitting
| MODEL | ΦD | G | M | A | H1 | H2 | L | B |
| PMF04-01 | 4 | G1/8 | M12 | 7 | 14 | 14 | 9.5 | 23.3 |
| PMF04-02 | G1/4 | 9 | 17 | 11.6 | 25.4 | |||
| PMF06-01 | 6 | G1/8 | M14 | 7 | 17 | 17 | 7 | 24.2 |
| PMF06-02 | G1/4 | 9 | 17 | 12 | 29.2 | |||
| PMF06-03 | G3/8 | 10 | 19 | 13 | 30.2 | |||
| PMF08-01 | 8 | G1/8 | M16 | 7 | 19 | 19 | 5 | 27.4 |
| PMF08-02 | G1/4 | 9 | 19 | 12 | 34.4 | |||
| PMF08-03 | G3/8 | 10 | 19 | 13 | 34.4 | |||
| PMF08-04 | G1/2 | 12 | 24 | 15 | 36.4 | |||
| PMF10-01 | 10 | G1/8 | M20 | 7 | 21 | 24 | 7.7 | 28.4 |
| PMF10-02 | G1/4 | 9 | 21 | 9.7 | 30.4 | |||
| PMF10-03 | G3/8 | 10 | 21 | 13 | 33.7 | |||
| PMF10-04 | G1/2 | 12 | 24 | 15 | 35.7 | |||
| PMF12-02 | 12 | G1/4 | M22 | 9 | 24 | 27 | 9.1 | 33.5 |
| PMF12-03 | G3/8 | 10 | 24 | 10 | 34.4 | |||
| PMF12-04 | G1/2 | 12 | 24 | 15 | 39.4 |
Drawing & Specification
PMF-G、PFM
Welcome To Share This Page
| MODEL | ΦD | NPT | M | A | H1 | H2 | L | B |
| PMF5/32-N1 | 5/32 | NPT1/8 | M12 | 7.5 | 14.3 | 14.3 | – | 23.8 |
| PMF3/16-N1 | 3/16 | NPT1/8 | M14 | 7.5 | 17.4 | – | 24.7 | |
| PMF3/16-N2 | NPT1/4 | 10.5 | – | 30.4 | ||||
| PMF1/4-N1 | 1/4 | NPT1/8 | 7.5 | 17.4 | – | 24.7 | ||
| PMF1/4-N2 | NPT1/4 | 10.5 | – | 30.4 | ||||
| PMF5/16-N1 | 5/16 | NPT1/8 | M16 | 7.5 | 17.4 | 19 | – | 27.9 |
| PMF5/16-N2 | NPT1/4 | 10.5 | 19 | – | 35.9 | |||
| PMF5/16-N3 | NPT3/8 | 11 | 19 | – | 35.4 | |||
| PMF3/8-N2 | 3/8 | NPT1/4 | M20 | 10.5 | 22.2 | 22.2 | – | 31.9 |
| PMF3/8-N3 | NPT3/8 | 11 | – | 34.7 | ||||
| PMF1/2-N3 | 1/2 | NPT3/8 | M22 | 11 | 25.4 | 25.4 | – | 35.4 |
| PMF1/2-N4 | NPT1/2 | 14 | – | 41.4 |
