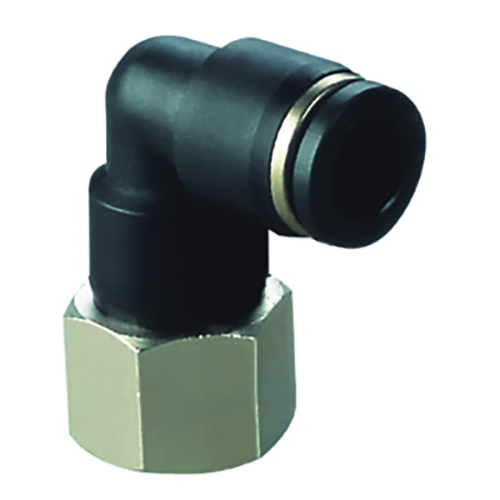

Female Elbow
| MODEL | ФD | G | A | B | E | H |
| PLF04-M5 | 4 | M5 | 4.5 | 19.5 | 17.5 | 10 |
| PLF04-M6 | M6 | 5 | 20 | |||
| PLF04-01 | G1/8 | 7 | 23 | 14 | ||
| PLF04-02 | G1/4 | 9 | 25 | 17 | ||
| PLF06-M5 | 6 | M5 | 4.5 | 20.7 | 19 | 12 |
| PLF06-M6 | M6 | 5 | 21.2 | |||
| PLF06-01 | G1/8 | 7 | 24.4 | 14 | ||
| PLF06-02 | G1/4 | 9 | 26.4 | 17 | ||
| PLF06-03 | G3/8 | 10 | 27.7 | 19 | ||
| PLF08-01 | 8 | G1/8 | 7 | 24.8 | 22.8 | 14 |
| PLF08-02 | G1/4 | 9 | 27 | 17 | ||
| PLF08-03 | G3/8 | 10 | 28.5 | 19 | ||
| PLF08-04 | G1/2 | 12 | 30.5 | 24 | ||
| PLF10-01 | 10 | G1/8 | 7 | 23 | 26.3 | 17 |
| PLF10-02 | G1/4 | 9 | 29.5 | |||
| PLF10-03 | G3/8 | 10 | 31 | 19 | ||
| PLF10-04 | G1/2 | 12 | 33.5 | 24 | ||
| PLF12-02 | 12 | G1/4 | 9 | 26 | 29.6 | 21 |
| PLF12-03 | G3/8 | 10 | 34 | |||
| PLF12-04 | G1/2 | 12 | 36.5 | 24 |
Drawing & Specification
PLF
Welcome To Share This Page
| MODEL | ФD | G | A | B | E | H |
| PLF5/32-N1 | 5/32 | NPT1/8 | 7.5 | 23.5 | 17.5 | 14.3 |
| PLF3/16-N1 | 3/16 | NPT1/8 | 7.5 | 23.8 | 17.8 | |
| PLF3/16-N2 | NPT1/4 | 10.5 | 26.5 | 17.4 | ||
| PLF1/4-N1 | 1/4 | NPT1/8 | 7.5 | 24.9 | 19 | 14.3 |
| PLF1/4-N2 | NPT1/4 | 10.5 | 27.9 | 17.4 | ||
| PLF5/16-N1 | 5/16 | NPT1/8 | 7.5 | 25 | 22.8 | 14.3 |
| PLF5/16-N2 | NPT1/4 | 10.5 | 28.5 | 17.4 | ||
| PLF5/16-N3 | NPT3/8 | 11 | 29.5 | 22.2 | ||
| PLF3/8-N2 | 3/8 | NPT1/4 | 10.5 | 31 | 26.3 | 17.4 |
| PLF3/8-N3 | NPT3/8 | 11 | 31.5 | 22.2 | ||
| PLF1/2-N3 | 1/2 | NPT3/8 | 11 | 34.5 | 29.6 | |
| PLF1/2-N4 | NPT1/2 | 14 | 37.5 | 25.4 |
