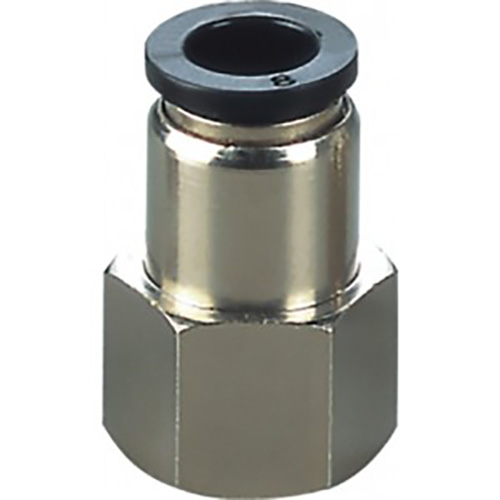

Female Straight Union G Thread
| MODEL | ФD | G | A | B | H |
| PCF04-01 | 4 | G1/8 | 7 | 22.3 | 14 |
| PCF04-02 | G1/4 | 9 | 25.3 | 17 | |
| PCF06-01 | 6 | G1/8 | 7 | 24.4 | 14 |
| PCF06-02 | G1/4 | 9 | 26.4 | 17 | |
| PCF06-03 | G3/8 | 10 | 27.4 | 19 | |
| PCF08-01 | 8 | G1/8 | 7 | 25.9 | 14 |
| PCF08-02 | G1/4 | 9 | 27.9 | 17 | |
| PCF08-03 | G3/8 | 10 | 28.9 | 19 | |
| PCF08-04 | G1/2 | 12 | 30.9 | 24 | |
| PCF10-01 | 10 | G1/8 | 7 | 27.7 | 17 |
| PCF10-02 | G1/4 | 9 | 29.7 | ||
| PCF10-03 | G3/8 | 10 | 30.7 | 19 | |
| PCF10-04 | G1/2 | 12 | 32.7 | 24 | |
| PCF12-02 | 12 | G1/4 | 9 | 32.9 | 20 |
| PCF12-03 | G3/8 | 10 | 33.9 | ||
| PCF12-04 | G1/2 | 12 | 35.9 | 24 |
Drawing & Specification
PCF-G
Welcome To Share This Page
| MODEL | ФD | NPT | A | B | H |
| PCF5/32-N1 | 5/32 | NPT1/8 | 7.5 | 23.8 | 14.3 |
| PCF5/32-N2 | NPT1/4 | 10.5 | 26.8 | 17.4 | |
| PCF3/16-N1 | 3/16 | NPT1/8 | 7.5 | 24.4 | 14.3 |
| PCF3/16-N2 | NPT1/4 | 10.5 | 27.4 | 17.4 | |
| PCF1/4-N1 | 1/4 | NPT1/8 | 7.5 | 24.9 | 14.3 |
| PCF1/4-N2 | NPT1/4 | 10.5 | 27.9 | 17.4 | |
| PCF5/16-N1 | 5/16 | NPT1/8 | 7.5 | 26.4 | 14.3 |
| PCF5/16-N2 | NPT1/4 | 10.5 | 29.4 | 17.4 | |
| PCF5/16-N3 | NPT3/8 | 11 | 29.9 | 22.2 | |
| PCF3/8-N2 | 3/8 | NPT1/4 | 10.5 | 31.2 | 17.4 |
| PCF3/8-N3 | NPT3/8 | 11 | 31.7 | 22.2 | |
| PCF1/2-N2 | 1/2 | NPT1/4 | 10.5 | 34.4 | |
| PCF1/2-N3 | NPT3/8 | 11 | 34.9 |
