Plug in Reducer Elbow

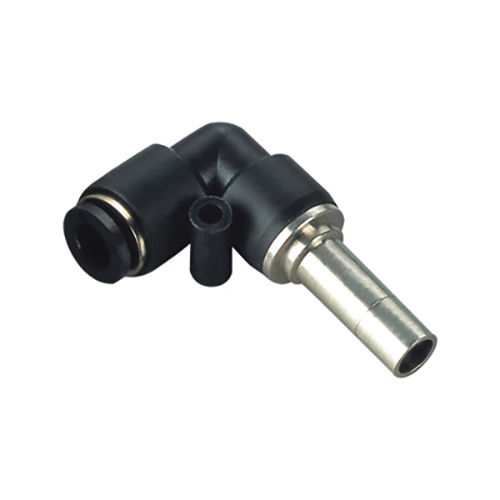

PLGJ Plug in Reducer Elbow
MODEL ΦD1 ΦD2 B E
PLGJ06-04 6 4 35 17.5
PLGJ08-06 8 6 39.2 19
PLGJ10-08 10 8 44 22.8
PLGJ12-10 12 10 48.5 26.3


Drawing & Specification

PLGJ

PLGJ Plug in Reducer Elbow Drawing
Welcome To Share This Page
MODEL ΦD1 ΦD2 B E
PLGJ3/16-5/32 3/16 5/32 33 17.5
PLGJ1/4-5/32 1/4 5/32 35 17.5
PLGJ1/4-3/16 1/4 3/16 35 17.5
PLGJ5/16-1/4 5/16 1/4 39.2 19
PLGJ3/8-5/16 3/8 5/16 42.5 22.8
PLGJ1/2-3/8 1/2 3/8 52.8 26.3
