Stainless Steel Grooved Elbows 22.5° & 11.5° Schedule 10S

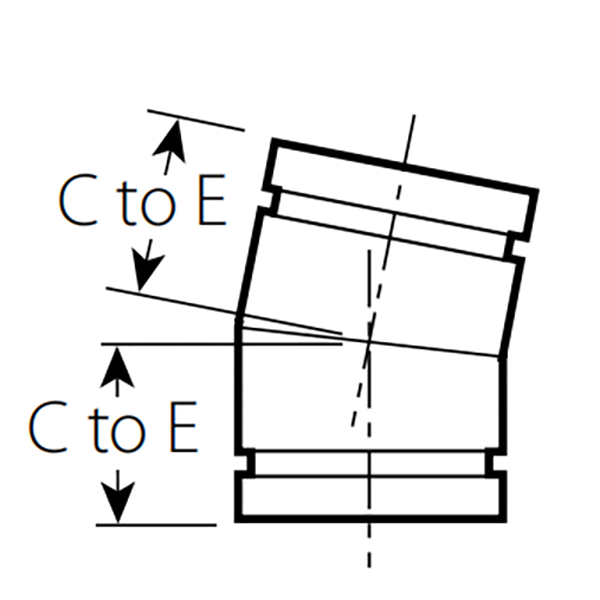

Drawing & Specification
| Size | LSG22510S | LSG112510S | |||||||||
| Normial | Actual Outside Diameter | C-E | C-E | ||||||||
| inch | inch | inch | inch | ||||||||
| DN | mm | mm | mm | ||||||||
| ¾ | 1.13 | 1.63 | 1.38 | ||||||||
| DN200 | 26.9 | 41 | 35 | ||||||||
| 1 | 1.325 | 1.63 | 1.38 | ||||||||
| DN25 | 33.7 | 41 | 35 | ||||||||
| 1¼ | 1.75 | 1.75 | 1.38 | ||||||||
| DN32 | 42.4 | 44 | 35 | ||||||||
| 1½ | 1.9 | 1.75 | 1.38 | ||||||||
| DN40 | 48.3 | 44 | 35 | ||||||||
| 2 | 2.375 | 1.88 | 1.38 | ||||||||
| DN50 | 60.3 | 48 | 35 | ||||||||
| 2½ | 2.875 | 2 | 1.5 | ||||||||
| 73 | 51 | 38 | |||||||||
| 3 | 2.25 | 1.5 | |||||||||
| DN65 | 76.1 | 57 | 38 | ||||||||
| 3 | 3.55 | 2.25 | 1.5 | ||||||||
| DN80 | 88.9 | 57 | 38 | ||||||||
| 4 | 4.5 | 2.88 | 1.75 | ||||||||
| DN100 | 114.3 | 73 | 44 | ||||||||
| 5.5 | 2.88 | 2 | |||||||||
| DN125 | 139.7 | 73 | 51 | ||||||||
| 6.5 | 3.13 | 2 | |||||||||
| 165.1 | 79 | 51 | |||||||||
| 6 | 6.625 | 3.13 | 2 | ||||||||
| DN150 | 168.3 | 79 | 51 | ||||||||
| 8 | 8.625 | 3.88 | 2 | ||||||||
| DN200 | 219.1 | 99 | 51 | ||||||||
| 10 | 10.75 | 4.38 | 2.13 | ||||||||
| DN250 | 273 | 111 | 54 | ||||||||
| 12 | 12.75 | 4.88 | 2.25 | ||||||||
| DN300 | 323.9 | 124 | 57 | ||||||||
