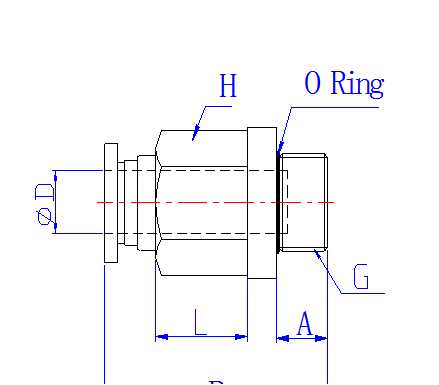

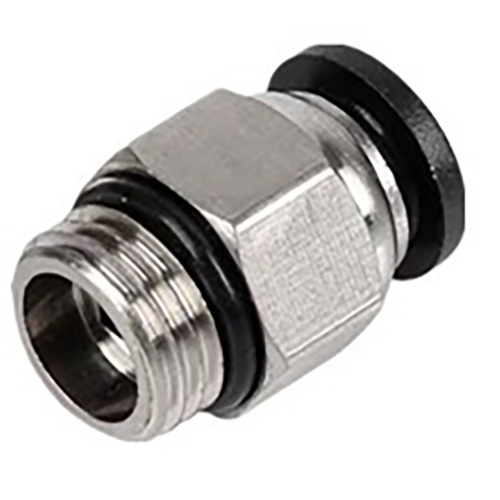

Straight Stud Union with G Thread
| MODEL | ФD | G | A | B | L | H |
| PC04-G01 | 4 | G1/8 | 5 | 19.3 | 7.4 | 10 |
| PC04-G02 | G1/4 | 5.8 | 16.6 | 3.9 | ||
| PC06-G01 | 6 | G1/8 | 5 | 19.9 | 6.7 | 12 |
| PC06-G02 | G1/4 | 5.8 | 20.4 | 6.4 | ||
| PC06-G03 | G3/8 | 6.8 | 20 | 4.5 | ||
| PC06-G04 | G1/2 | 8 | 21.7 | 4.5 | ||
| PC08-G01 | 8 | G1/8 | 5 | 24.4 | 11.1 | 14 |
| PC08-G02 | G1/4 | 5.8 | 22.2 | 7 | ||
| PC08-G03 | G3/8 | 6.8 | 21.2 | 4.5 | ||
| PC08-G04 | G1/2 | 8 | 22.9 | 4.5 | ||
| PC10-G01 | 10 | G1/8 | 5 | 26.3 | 11 | 17 |
| PC10-G02 | G1/4 | 5.8 | 27.5 | 13.9 | ||
| PC10-G03 | G3/8 | 6.8 | 25 | 8.9 | ||
| PC10-G04 | G1/2 | 8 | 22.7 | 4.9 | ||
| PC12-G02 | 12 | G1/4 | 5.8 | 31.2 | 12 | 20 |
| PC12-G03 | G3/8 | 6.8 | 28.2 | 11 | ||
| PC12-G04 | G1/2 | 8 | 28.9 | 9.5 | ||
| PC14-G03 | 14 | G3/8 | 6.8 | 31.8 | 13 | 21 |
| PC14-G04 | G1/2 | 8 | 29.5 | 10 | 24 | |
| PC16-G03 | 16 | G3/8 | 6.8 | 34.9 | 14.5 | 24 |
| PC16-G04 | G1/2 | 8 | 36.1 | 18 |
